Feature
Low cost
Bright LED 0.56'(red)
Input 0-5A(Current Transformer)can adjust fullscale 200-1999
AC20v,200V,600V measurement
Power supply 145V-245V |
|
| AC Voltage measurement |

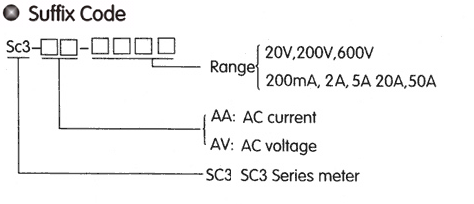

| Model Code |
Range |
Frequency Range |
Input Impedance |
Input Protection |
| sc3-AV-20V |
0-19.99V |
45Hz-400Hz |
≥2MW |
≤750V |
| sc3-AV-200V |
0-199.9V |
45Hz-400Hz |
≥2MW |
≤750V |
| sc3-AV-600V |
0-600V |
45Hz-400Hz |
≥2MW |
≤750V |
Accuracy: 0.5%F.S1Digit(23 5) |
|
| AC Current measurement |
| Model Code |
Range |
Frequency Range |
Input Impedance |
Input Protection |
| sc3-AA-200M |
0-199.9mA |
45Hz-400Hz |
≤1W |
≤1A |
| sc3-AA-2A |
0-1.999A |
45Hz-400Hz |
≤0.1W |
≤5A |
| sc3-AA-5A |
0-5.00A |
45Hz-400Hz |
≤0.05W |
≤7A |
| sc3-AA-20A |
20A:5A |
|
1.2PerF.S. |
| sc3-AA-50A |
50A:5A |
|
1.2PerF.S. |
| Accuracy:0.5%F.S1Digit(235) |

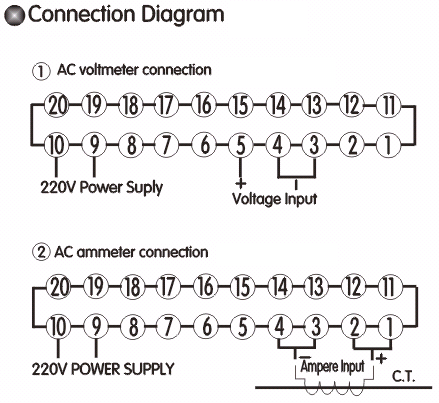

| Notes:attention please:With AC C.T.of the
second ampere is 5A that input current are bigger than
5A.And AC P.T.of the voltage second is 100V,if input volfage
are higher than 1000V. |
|

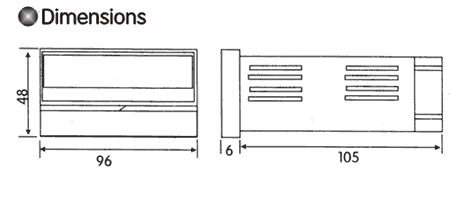

| Sperifications |
| Input mode |
Single ended |
| A/D conerter |
Dual slope |
| Sampling time |
ABt.2.5sec |
| Over Range |
"-1"or"1" |
| Display |
Red LED(14.2mmH) |
| Polarity display |
Display"-"only |
| Power supply |
145V-245V 50Hz/60Hz |
| Power consumption |
≤1.5VA |
| Dielectic strength |
Ac1500V1min |
| Insulation Res. |
DC500V≥100MW |
| Operation Temp. |
1-50 |
| |
≥NMR40db(50Hz/60Hz) |
|
|
 |
 |
