                      Feature

                        Low cost

                        Bright LED 0.8'(red)

                        Input 0-5A(Current Transformer)can adjust fullscale 200-1999

                        AC20V,200V,600V measurement Power supply 145V-245V














                      Volt/Amp measurement

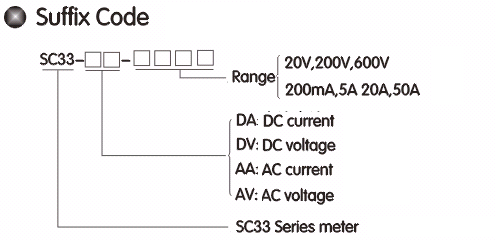

                      Model Code
                      Range
                      Resolution
                      Input Impedance
                      Input Protection




                      SC33-DV
                      19.99mV/1.999V

                        19.99V/199.9V

                        600V


      10uV/1mV

                          10mV/100mV

                          1V


                      >4MW
                      20%F.S




                      SC33-DA
                      19.99mA/1.999A

                        5.00A


                      10uA/1mA

                        100mA


                       <1W
                      15%F.S




                      SC33-AV


                        19.99V/199.9V

                        600V
                      10mV/100mV

                        1V
                      >4MW
                      20%F.S




                      SC33-AA
                      19.99mA/1.999A

                        標準5.00A輸入


                      10uA/1mA

                        10mA


                      >1W
                      15%F.S




                      Accuracy:0.5%F.S1Digit(235)




                      Notes:attention please:With AC C.T.of the
                        second ampere is 5A that input current are bigger than
                        5A.And AC P.T.of the uoltage second is 100V,if input voltage
                        are higher than 1000V.














                      Specifications




                      Input mode
                      Single ended




                      A/D conerter
                      Dual slope




                      Sampling time
                      ABt.2.5sec




                      Over Range
                      "-1"or"1"




                      Display
                      Red LED(14.2mmH)




                      Polarity display
                      Display"-"only




                      Power supply
                      145V-245V 50Hz/60Hz




                      Power consumption
                      ≤1.5VA




                      Dielectic strength
                      Ac1500V1min




                      Insulation Res.
                      DC500V≥100MW




                      Operation Temp.
                      1-50




                      抗串模干擾
                      ≥NMR40db(50Hz/60Hz)
