      Pw991Pw993 Pw994


















                      Feature

                        HI&LO Setpoint compare

                        Bright LED 0.56'(red)

                        With Rs232 interface

                        Isolation of photoelectric ofr analog output 4-20mA

                        165-245V Free power supply 95V-245V














                      Mumtl-parameter measurement

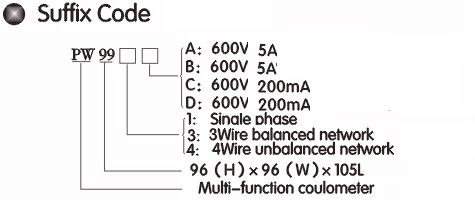

                      Model code
                      Network config
                      Frequency Range
                      Inputvoltage
                      Input ampere




                      PW991
                      Single phase
                      50/60/400Hz
                      0-600V
                      C.T out 5A




                      PW993
                      3Wire balanced network
                      50/60/400Hz
                      0-600V
                      C.T out 5A




                      PW994
                      4Wire unbalanced network
                      50/60/400Hz
                      0-600V
                      C.T out 5A




                      Accuracy:0.5%F.S1Digit(235)














                      Specifications




                      Funtion
                       P,V,I,PF,Hz




                      A/D conerter
                      V/F




                      Sampling time
                      Abt.2.5 sec




                      Over Range
                      “－－－－”




                      Process Display
                      Red LED(0.56')




                      Setting Display
                      Red LED(0.28')




                      CosΦ
                      -0.5～1～0.5




                      Analog output
                      4-20mA(<500W)




                      Arlam output
                      Relay output (250V 2A)




                      Interface
                      RS-485




                      Dielectic Strength
                      Ac 1500V 1min




                      Insulation Res.
                      DC 500V≥100MW




                      Power consumption
                      ≤4.5VA




                      Power supply
                      165-245V




                       抗串模干擾
                      ≥NMR40db(50Hz/60Hz)










































    Copyright
      2002-2003　　　　　　Sichuan Ludao Electrical Equipment Co,.Ltd. Tel:0830-2573101 2573102 Fax:0830-2573102
